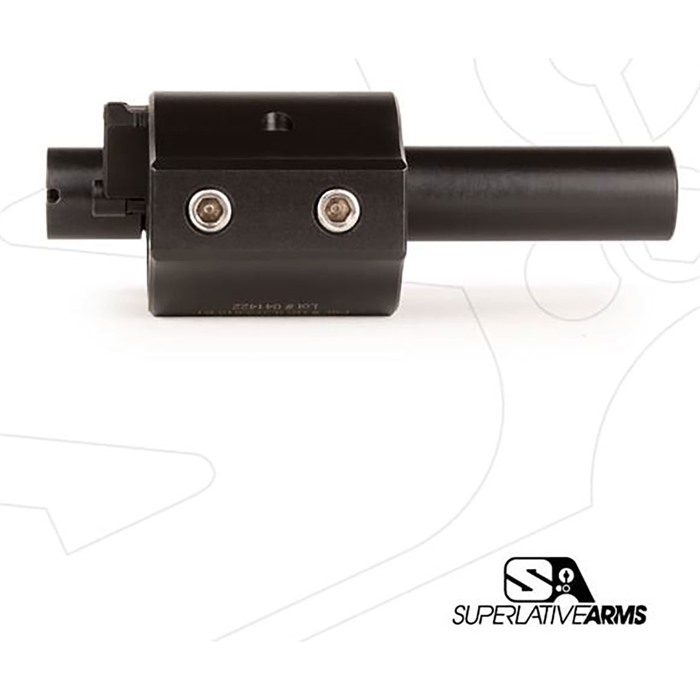

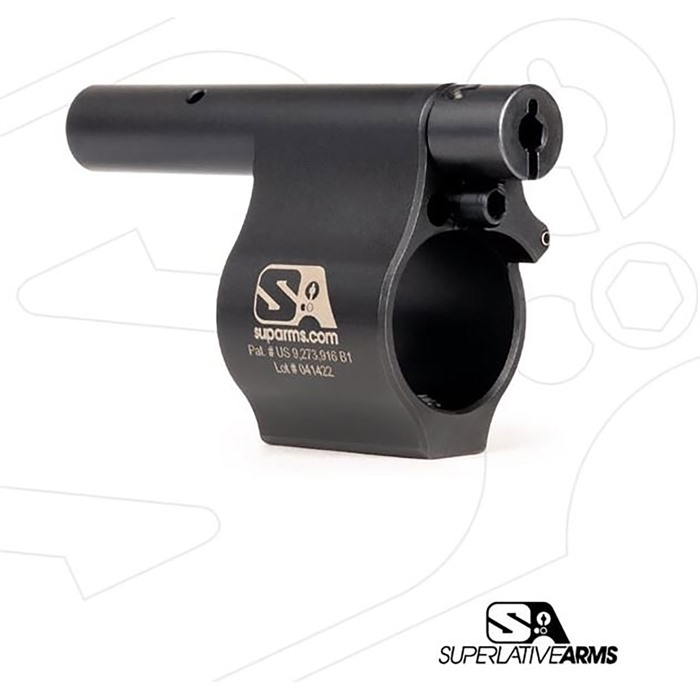

The Superlative Arms patent pending “Bleed Off”, direct impingement, gas block for the AR15 platform adjusts the gas flow by bleeding the gas out of the block instead of restricting the flow like conventional adjustable blocks. NOT RATED FOR 300 BLACKOUT IN PISTOL LENGTH Results: The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler. Reduction of felt recoil. Patented adjustment detent is located outside of the block and therefore no contamination. The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up. Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out. When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back. DATA: Firearm Type: AR15 Gas Length: Pistol, Carbine, Mid-Length, and Rifle Barrel Diameter: 0.750" Weight: 12.8 oz., 13.1 oz, 13.4 oz, and 13.8 oz Piston Block Attachment Type: Clamp On, Socket Head Cap Screws Piston Block Material and Finish: 416 SS, Melonite Carrier: Ion Bonded, 1 pc. Carrier w/ Skis and Dimpled Key Gas Adjustment: 30 Locked Positions, Front Of Block Bleed Off Port: Front Of Block INCLUDED: Piston Block Assembly Carrier (bolt not included). (1) 3/32" X 6" Hex Key (tool to adjust gas screw) (1) 9/64" X 6" Hex key (tool to install/remove gas block plug) (1) Bushing and insert tool Installation Instructions & QR Code For Video Tutorial
Superlative Armsin patentin alainen "Bleed Off" -suora vaikutuskaasu, kaasulohko AR15-alustalle säätää kaasun virtausta päästämällä kaasua lohkosta ulos sen sijaan, että se rajoittaisi virtausta kuten perinteiset säädettävät lohkot. EI ARVIOITU 300 BLACKOUT -PISTOLI PITUUDESSA Tulokset: Lohkossa käytettävä paine on vähennetty vain niin paljon kuin tarvitaan vetoketjun ajamiseen. Jäljelle jäävä kaasu/paine päästetään lohkosta, mikä mahdollistaa järjestelmän toimivan paljon puhtaammin ja viileämmin. Tunnetun rekyylin väheneminen. Patentoitu säätödetentti sijaitsee lohkon ulkopuolella, joten saastumista ei tapahdu. Kaasun säätöruuvi ei rajoita kaasun virtausta; siksi ei ole eroosiota tai ruuvin jumiutumista / ei detentin menetystä hiilipölyn vuoksi. Vaikka se on irrotettavissa, olemme lisänneet turvamekanismin, joka estää sinua vahingossa kääntämästä ruuvia kokonaan ulos. Kun käytetään SBR:itä ja/tai vaimentimia, päästölähtöportti mahdollistaa ylimääräisen paineen purkautuvan lohkosta, mikä vähentää takaisinpäin tapahtuvaa painetta. DATA: Asetyyppi: AR15 Kaasupituus: Pistolet, Carbine, Mid-Length ja Rifle Kanuunan halkaisija: 0.750" Paino: 12.8 oz., 13.1 oz, 13.4 oz ja 13.8 oz Pistonlohkon kiinnitystyyppi: Clamp On, Socket Head Cap Screws Pistonlohkon materiaali ja viimeistely: 416 SS, Melonite Carrier: Ion Bonded, 1 kpl. Carrier w/ Skis ja Dimpled Key Kaasun säätö: 30 lukittua asentoa, Lohkon etuosan päästölähtöportti: Lohkon etuosa MUKANA: Pistonlohkon kokoonpano Carrier (pultti ei sisälly). (1) 3/32" X 6" Hex Key (työkalu kaasuruuvin säätämiseen) (1) 9/64" X 6" Hex key (työkalu kaasulohkon tulpan asentamiseen/poistamiseen) (1) Bushing ja insert-työkalu Asennusohjeet & QR-koodi videon opetusohjelmalle
