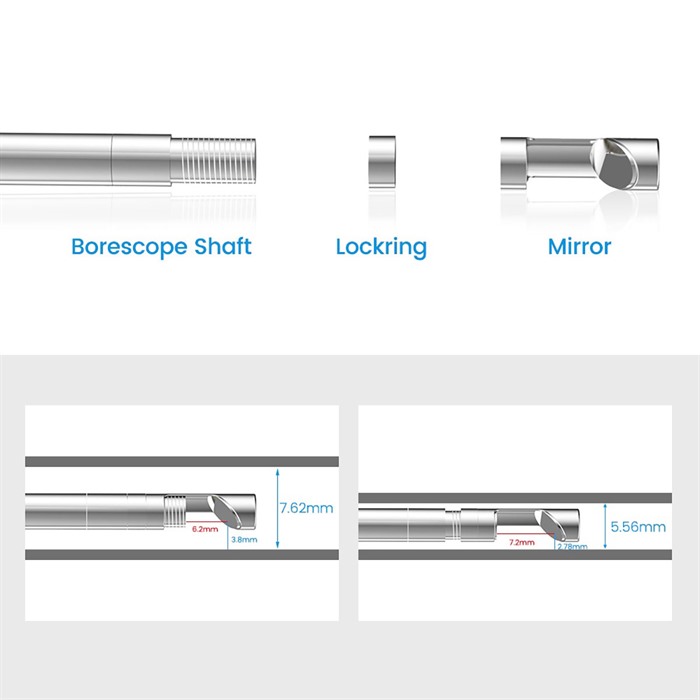

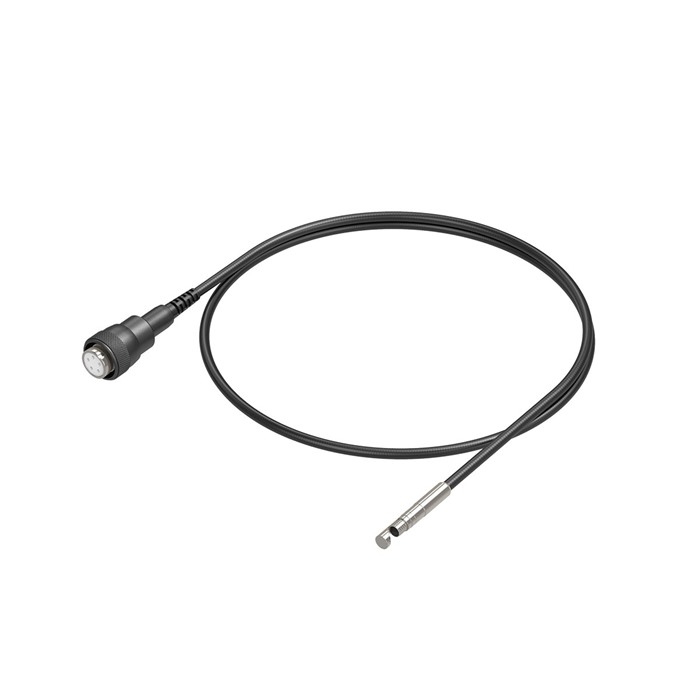

Technical Specs Model Number: NTG100 Probe Type: Flexible steel fiber probe Diameter: 0.197 in (5.0 mm) Probe Length: 45 in (115 cm) Data Cable Length: 60 in (150 cm) Megapixel: 1.0 Megapixel Resolution: 1280x720 pixels Viewing Angle: 70° Depth of Field of the camera WITHOUT side-view mirror 1.18 in to 3.94 in (30 mm to 100 mm) Depth of Field of the camera WITH 0.2 in (5 mm) side-view mirror: With lock ring on: 0 in to 0.28 in (0 mm to 7 mm) Without lock ring: 0 in to 0.39 in (0 mm to 10 mm) Depth of Field of the camera WITH 0.28 in (7 mm) side-view mirror: With lock ring on: 0 in to 0.08 in (0 mm to 2mm) Without lock ring: 0 in to 0.16 in (0 mm to 4 mm) Depth of Field of the camera WITH 0.33 in (8.3 mm) side-view mirror: With lock ring on: 0 in to 0.08 in (0 mm to 2 mm) Without lock ring: 0 in to 0.14 (0 mm to 3.5 mm) Depth of Field of the camera WITH 0.47 in (12 mm) side-view mirror: With lock ring on: 0 in to 0.06 in (0 mm to 1.5 mm) Without lock ring: 0 in to 0.12 in (0 mm to 3 mm) Caliber (depends on the size of the side-view mirror you use): 0.22 in (5 mm) Caliber and larger 0.28 in (7 mm) Caliber and larger 0.33 in (8.3 mm) Caliber and larger 0.47 in (12 mm) Caliber and larger LED Light: 6 Adjustable High-intensity LEDs Splash, Water and Dust Resistant: Rated IP67 (maximum depth of 1-meter up to 30 minutes) under IEC standard 60529 What is in the Package? Borescope 3x 0.2 in (5 mm) Side-view Mirrors Aviation to USB-A Connector USB-C Adaptor Instructions and Manuals User Manual Safety Manual
Technical Specs Model Number: NTG100 Probe Type: Flexible steel fiber probe Diameter: 0.197 in (5.0 mm) Probe Length: 45 in (115 cm) Data Cable Length: 60 in (150 cm) Megapixel: 1.0 Megapixel Resolution: 1280x720 pixels Viewing Angle: 70° Depth of Field of the camera WITHOUT side-view mirror 1.18 in to 3.94 in (30 mm to 100 mm) Depth of Field of the camera WITH 0.2 in (5 mm) side-view mirror: With lock ring on: 0 in to 0.28 in (0 mm to 7 mm) Without lock ring: 0 in to 0.39 in (0 mm to 10 mm) Depth of Field of the camera WITH 0.28 in (7 mm) side-view mirror: With lock ring on: 0 in to 0.08 in (0 mm to 2mm) Without lock ring: 0 in to 0.16 in (0 mm to 4 mm) Depth of Field of the camera WITH 0.33 in (8.3 mm) side-view mirror: With lock ring on: 0 in to 0.08 in (0 mm to 2 mm) Without lock ring: 0 in to 0.14 (0 mm to 3.5 mm) Depth of Field of the camera WITH 0.47 in (12 mm) side-view mirror: With lock ring on: 0 in to 0.06 in (0 mm to 1.5 mm) Without lock ring: 0 in to 0.12 in (0 mm to 3 mm) Caliber (depends on the size of the side-view mirror you use): 0.22 in (5 mm) Caliber and larger 0.28 in (7 mm) Caliber and larger 0.33 in (8.3 mm) Caliber and larger 0.47 in (12 mm) Caliber and larger LED Light: 6 Adjustable High-intensity LEDs Splash, Water and Dust Resistant: Rated IP67 (maximum depth of 1-meter up to 30 minutes) under IEC standard 60529 What is in the Package? Borescope 3x 0.2 in (5 mm) Side-view Mirrors Aviation to USB-A Connector USB-C Adaptor Instructions and Manuals User Manual Safety Manual
Lisää...
*
Hintoihin sisältyy ALV, toimitus aina 10€ per tilaus.
